In photonics, surface quality is the product.

Sidewall roughness sets the propagation-loss floor.

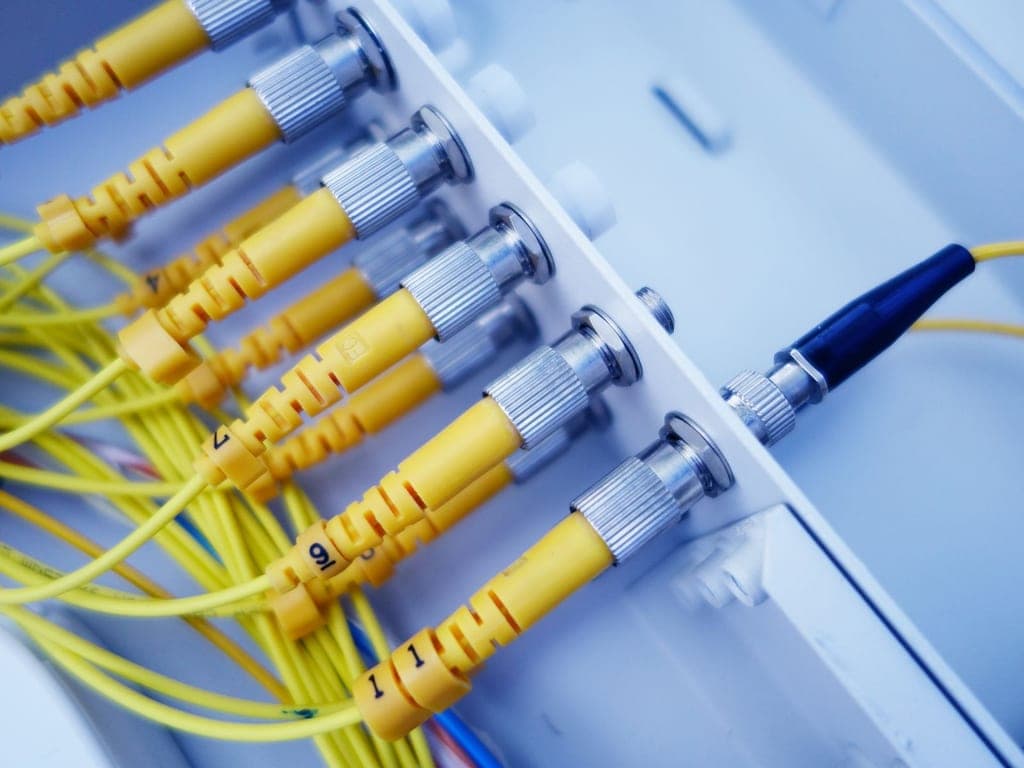

Macro of light guided along an optical surface
Waveguide surface qualitySURFACE

AI is pushing data centers beyond the bandwidth limits of copper — and silicon photonics is part of the answer. The surface quality that makes photonic devices perform starts at the etch step. Even nanometer-scale roughness on a waveguide sidewall scatters light, accumulating as propagation loss across the length of the waveguide and directly determining whether a device meets its performance spec. Atomic-level etch control is not a nice-to-have here. It is the enabling step.

As AI infrastructure leans harder on optics, the etch surface stops being a process detail and becomes a competitive one. The teams that treat surface finishing as a first-class step — not an afterthought — set the performance ceiling everyone else designs against.

// Where AAT fits

Where AAT Fits

Silicon photonics has moved into volume production, driven by AI data center demand for optical interconnects. Co-packaged optics, high-density WDM transceivers, and photonic integrated circuits all require waveguides with sidewall roughness at the sub-nanometer scale — a surface quality that conventional RIE cannot reliably deliver. Nanometer-scale line edge roughness is the primary yield and performance limiter in silicon photonics fabrication today.

AAT's isotropic ALE mode serves as a post-RIE finishing step on waveguide sidewalls, grating coupler structures, and other photonic features where surface quality directly determines optical performance. ALE smooths surfaces to a degree RIE cannot achieve, directly reducing propagation loss and improving device yield.

Waveguide Roughness SmoothingLight path →
Conventional RIELine edge roughness → light scattering
  • Insertion loss
  • Primary yield limiter
AI-native ALE · isotropic finishSmoothed sidewalls → clean propagation
  • Lower propagation loss
  • Higher device yield
// Demonstrated performance

Demonstrated Performance

High Precision Mode
~0 Å/ cycle
Etch per cycle (EPC)
  • Synergy Factor>80%
  • Linearity (R²)>0.9947
  • Cycle Time~2 seconds
Self-limiting saturationÅ / time →
Self-limiting · ~1 s
  • Modification saturation~2.0 Å at 1 second
  • Removal saturation~2.1 Å at 1 second

Self-limiting saturation confirmed at ~1 second for both steps — providing the repeatability that photonic device yield requires.

Source: SPIE Advanced Lithography + Patterning 2026, Paper 13984-24

// The AAT advantage

The AAT Advantage

01

Sub-nanometer surface control.

AAT's precision mode operates at ~2 Å/cycle with confirmed self-limiting behavior. At that scale, the tool is conditioning the surface cycle by cycle — to a quality level that no continuous etch process can match.

02

Fast enough for production.

At ~2 seconds per cycle, atomic-level surface finishing does not need to be a bottleneck in your photonics process flow.
